ABG CNC Water jet Cutting Machine

Print This Post

ABG CNC Water jet Cutting Machine

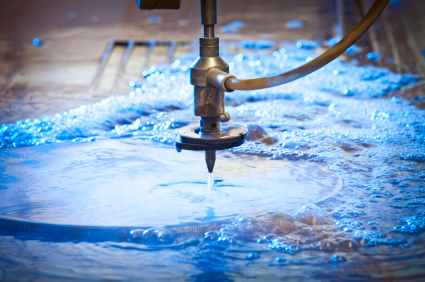

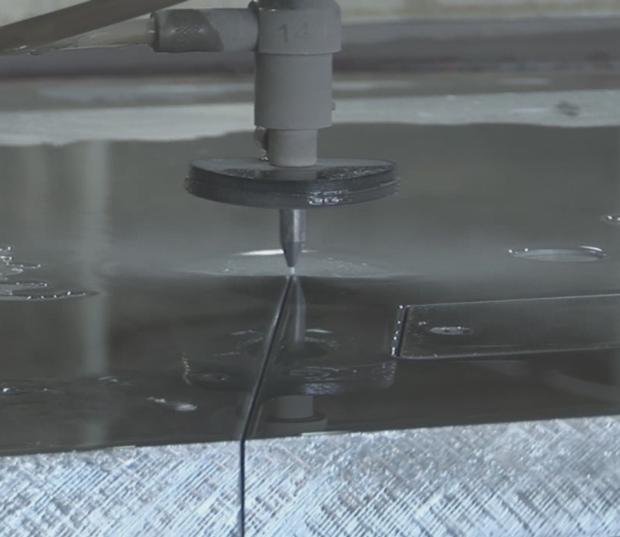

A water Jet machine is used for cutting a wide variety of materials using a very high-pressure jet of water . This machine works based on a powerful water pump . High pressure water is then ejected from a narrow nozzle . At the same time , an abrasive material is mixed with water . High pressure water as a carrier of abrasive substance , eject it from nuzzle . In fact , high speed of abrasive material caused erosion on the workpiece and cut it finally. CNC cutting machine works as controller of the nozzle and its fine movement made possible by the system software.
These machines are made in different models . ABG is one of those models . This model is an advanced machine to answer to all cutting needs . The optimized software for arrangement causes less expensive wastes . Also, replacement of production drawings is very easy . So the machine can be configured for production of different parts.
As we know , optimal using of time and facilities for manufacturing has been the permanent concern of any industrial unit. But today, two other concerns seem necessary for success of industrial units :

1) decreasing wastes .

2) production flexibility.

ABG machines produced using ball screws and enjoy significant precision mechanism . But producing them in large size is not possible . It should be mentioned that this model enjoys the most modern control motors i.e. AC Servo Motors .

Features:

1- High Precision
2- Low depreciation compared to gear rack models.
3- Cutting different shapes without limitation.
4- Cutting various materials: from steel and plated steel to glass and ceramic.
5- Mass production of parts.
6- Minimizing wastes by arranging good layouts.
7- Lack of environmental pollution.
8- No heat effect on the part.
9- Excellent quality of cutting area, so that parts requires no post machining operation.

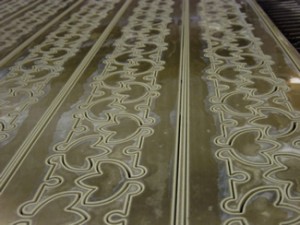

ABG-CNC-Water-Jet-Cutting-Machine-Topcncmachine-nozzle           ABG-CNC-Water-Jet-Cutting-Machine-Topcncmachine-building-brass-waterjet





Ac380 v 50hz

Working voltage

AC Servo Motors

Motion engines

In coder 10000 Pulse/R.P.M

feedback

10000 (mm/min)

Max speed of machine

0.1 (mm)

The maximum error of machine in each axis

0.01 (mm)

The maximum error of control system

TCMC

Soft ware

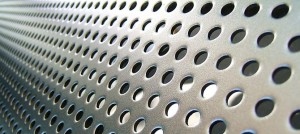

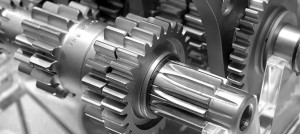

Waterjet-ABG-CNC-Water-Jet-Cutting-Machine-Topcncmachine-industrial-gears   Metal-cutting-waterjets-ABG-CNC-Water-Jet-Cutting-Machine-Topcncmachine



Technical information water jet



General information devices



ABG Model

Model name

3000 mm *2000 mm

Dimensions

4120mm(W)*4300mm(L)*1400mm(H)

Dimensions Of machine

1

Number of cutting head torch

250 kg

weight of the moving machined

1600 kg

Total weight of Machine(rails and desktop)

AC 220 V, 50HZ

Operating voltage

10000mm/min

Max speed of machine

0.1mm

The maximum error of machine in each axis

0.01mm

The maximum error of control system

Depending on the power of water jet pump

Maximum thickness of cutting

cutting head – pipe  – valve – nozzle

Cutting devices

automatic

Stop and connect water flow system

Electrically by the operator

Cutting head height control system

Installation (to order)

Automatic cutting head height control system

8 major and minor direction for cutting without a computer

Additional panel screen for easy operator access

By key of the panel control

Rapid increase system to three times of the speed

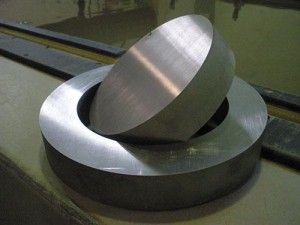

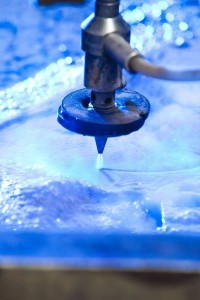

ABG-CNC-Water-Jet-Cutting-Machine-Topcncmachine-Jet    CNC-Waterjet-Water-Jet-Machine-Cutting-Steel-topcncmachine-Iron-ABG

Software info



Software is installed in win XP and 7

Array to optimize the cut pieces of plate

Possible to set the starting point of cutting, the cutting distance of the main

Priority to other forms of cutting

Scale mode

Design parts or use the patterns

cutting Information ; length cutting, work time, cutting time and …

System information from files produced by Auto CAD (transfer with flash, CD or network)



Technical information Components



MOTION MOTORS

Motor type

Working voltage

ampere

Rotational speed

Power

Brand

Country

Ac servo motor

220 v Ac

4A

3000  R.P.M

750W

Delta

Taiwan

Gear box

Made in

Gearbox type

Gear Ratio

coupling Type

Iran

Belt timing

1: 10

Straight



power transmission

Part name

Country

Brand

type

Rails

South Korea

HIWIN

LM Guide 20

power transmission

South Korea

HIWIN

Ball Scow



Mechanical Info

type

Part name

Billets

Electronic box

Billets

Other frames

St37

Holder columns

ST37
