H Beam Assembling Production Line Machinery

Print This Post

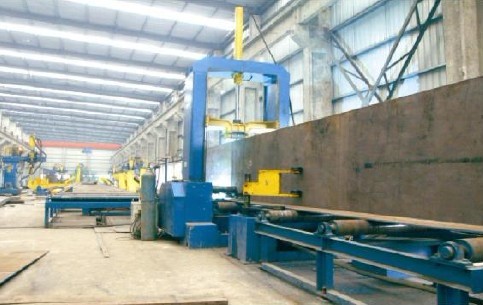

H Beam Assembling Production Line Machinery

H-Rolling Machine Features :


1– Powerful engine with strong threaded shaft for vertical transmission .
2- Front and rear pulley system for easy loading structures .
3- Web hand held fixture for keeping the structure in center .
4- Semi-automatic motion system on the table by using the powerful engine and the screw shaft mechanism .
5- Very small size for optimizing the structure .
6- Beautiful LCD with the best performance .





AC 380V 7/5 KW

Main Motion Motor

2.2

pressure Engine

Spiral

Pressure Gearbox

Threaded Shaft

Transmission

Motorized

Main Motion

4

Web handheld Fixture

 —

complete-h beam-production- line-topcncmachine-CNC-driling-H-steel-rolling     complete-h beam-production- line-topcncmachine-CNC-driling-H-steel-welding



complete-h beam-production- line-topcncmachine-CNC-driling-H-steel-submerg    complete-h beam-production- line-topcncmachine-CNC-driling-H-steel-assembling-assembly-gantry-welding

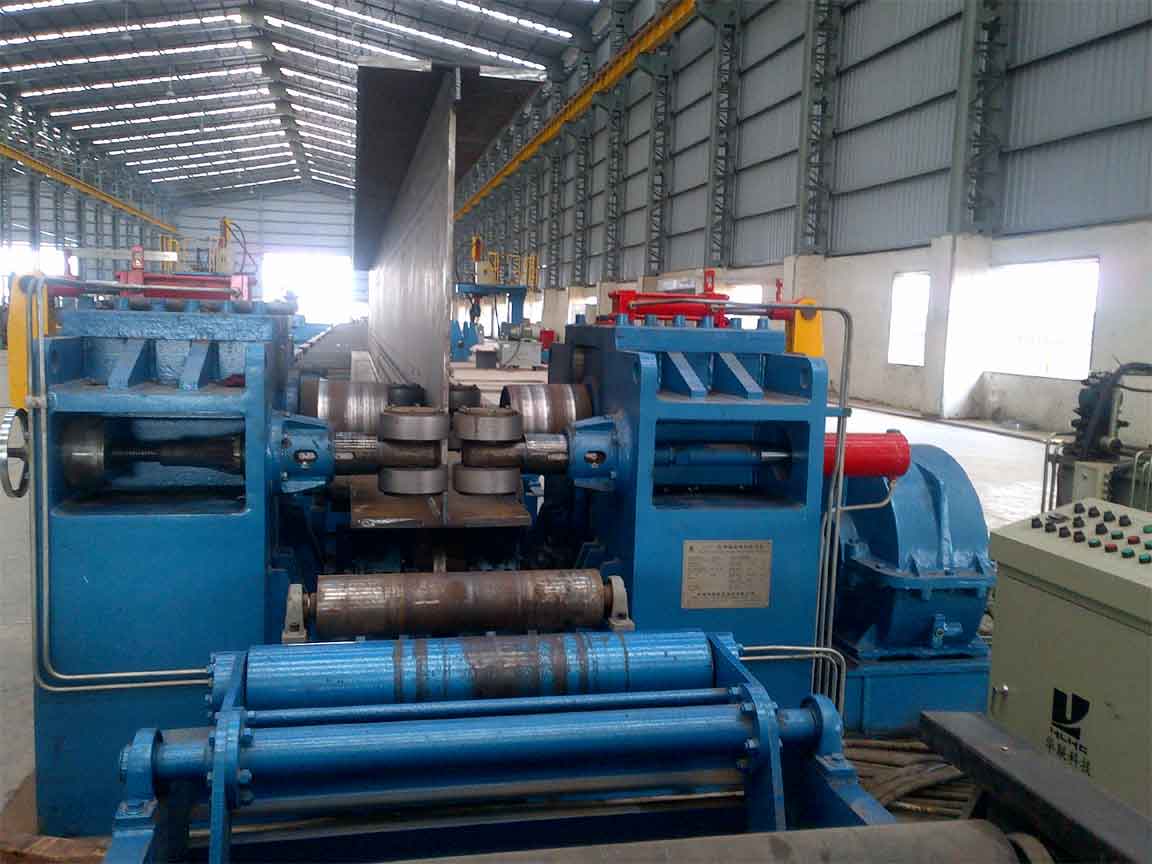

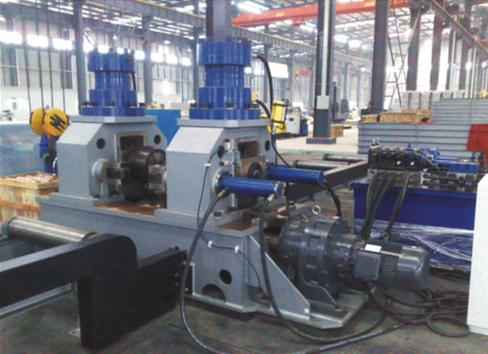

Rolling Machine for H-Structure


Upon completion of the production process , the H Beam structure will twist due to the heat from the welding. H-Rolling machine is used for reforming the structure back to the correct shape.

Features:


1- Design of the structure with minimum size .
2- Very strong bearings in all the parts .
3- Plated steel pulleys .
4- Use of ball screw for power transfer .
5- Micro switches for limiting the height .



Model/Kind

Specifications

NO

1200mm

Dimensions of flange

1

30mm

MAX Thickness of flange

2

4KW

Power

3

ISFAHAN SAHAND

Gear Box

4

MOTOGEN

Motor

5

ISFAHAN SAHAND

Motion gear Box

6

7.5 KW

Motion motor

7

10cm

web handheld Fixture Length move

8

10m

the conveyor system (before)

9

10m

the conveyor system (After)

 10

 —

complete-h beam-production- line-topcncmachine-CNC-driling-H-steel-Hydraulic-over-turning-machine    complete-h beam-production- line-topcncmachine-CNC-driling-H-steel-gantry-welding



Advantages



  • The minimum Size design of structures
  • Very strong Bearings in all the parts
  • Plating steel pulleys
  • Use the threaded Shaft for transmission
  • Limiting Micro switch height

 —

Box Maker Machines


Many building constructed based on steel structures . These structures must be carefully designed to maintain the pressure caused by the weight of the building . The principle of construction of these structures based on H type and Box type structures . Box type steel structures are used as a holder of the floors and shafts .


Features:

1- Orthogonally of Sides .
2- Increasing construction speed .
3- Less construction workers , reduce the need for skilled workers and assemblers .
4- Reduce manpower costs .



complete-BOX beam-production- line-topcncmachine-CNC-driling-H-steel-electro-slag-welding-machine-topcncmachine   complete-BOX beam-production- line-topcncmachine-CNC-driling-H-steel-Structure-Box-Beam-Automatic

BOX-beam-production- line-topcncmachine-CNC-driling-H-steel-welding-assembling           complete-BOX beam-production- line-topcncmachine-CNC-driling-H-steel-8-side-s
